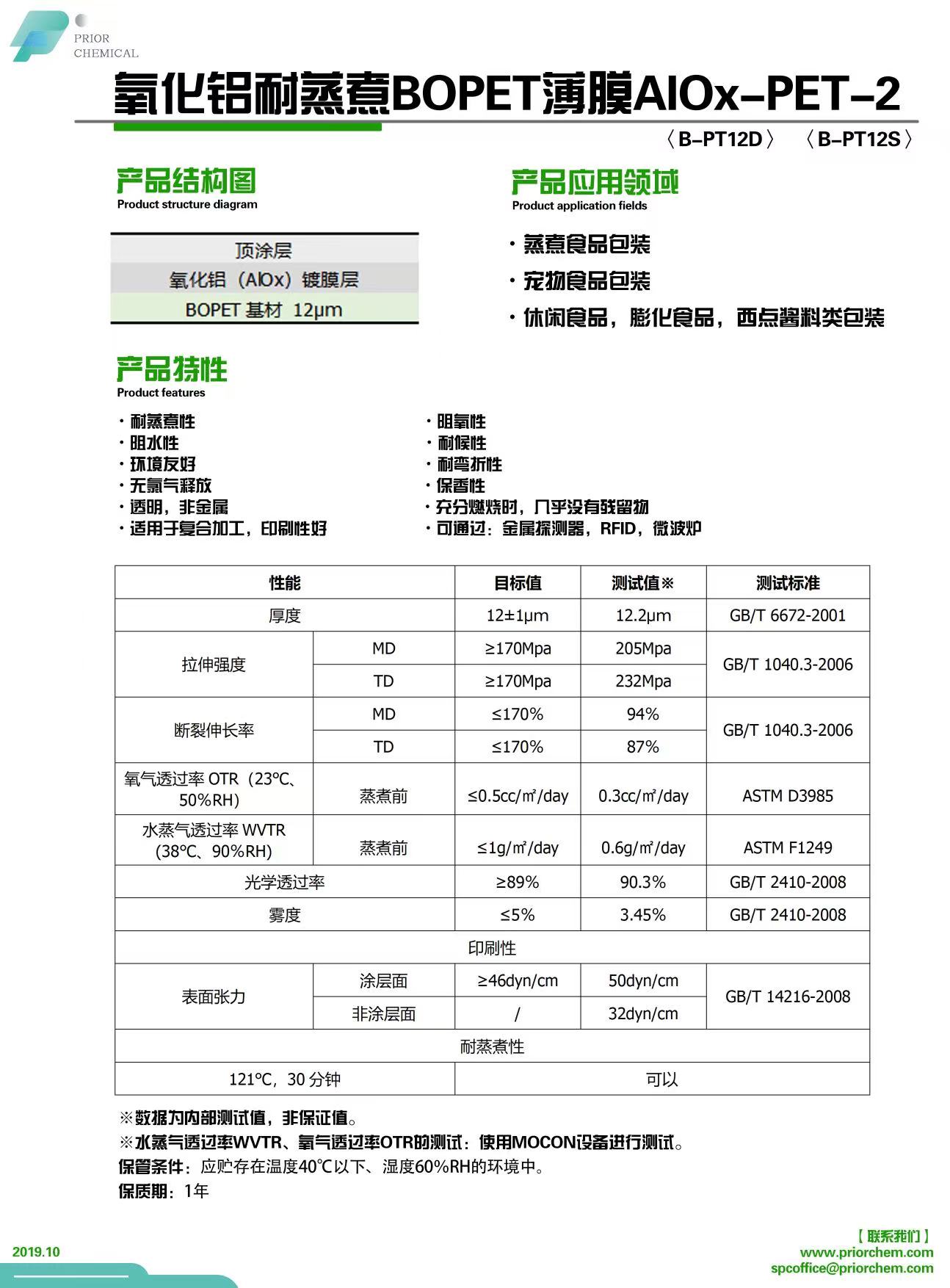

Transparent high barrier film
<B-PT12D> <B-PT12S>

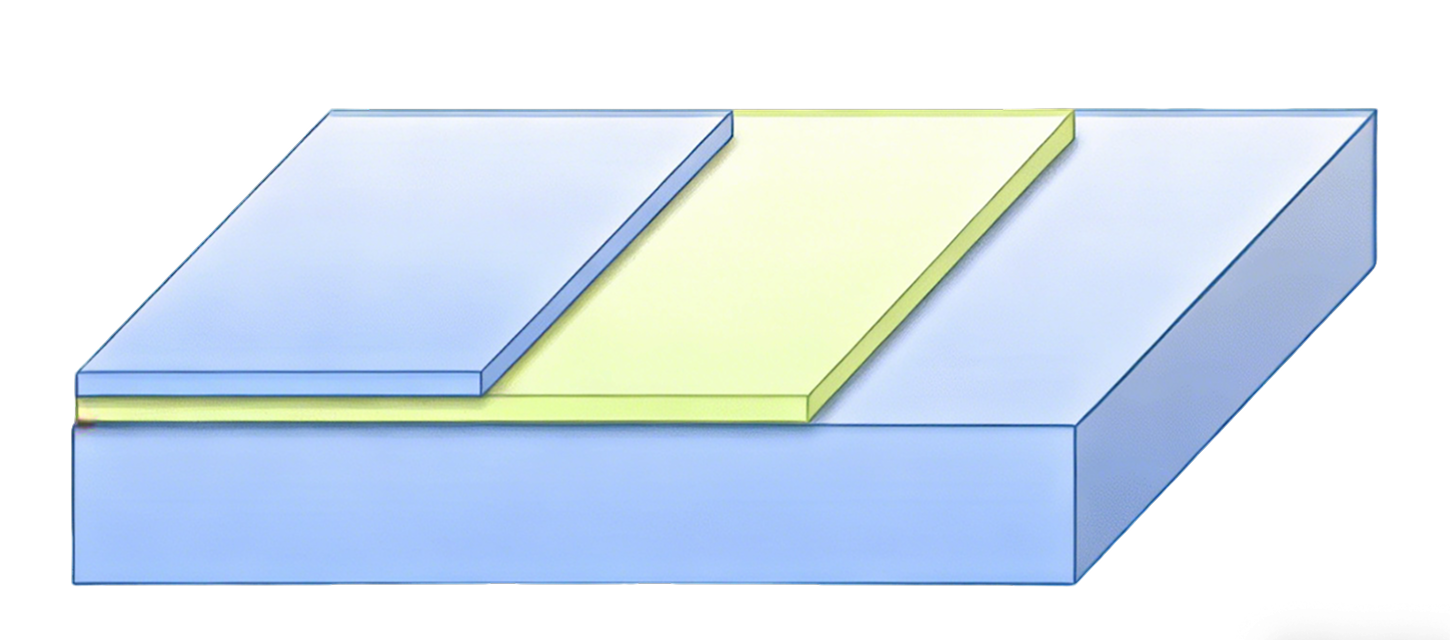

AIOx-PET-2

     Top Coating






                Aluminum Oxide (AlOx) Coating Layer








        BOPET Substrate 12μm

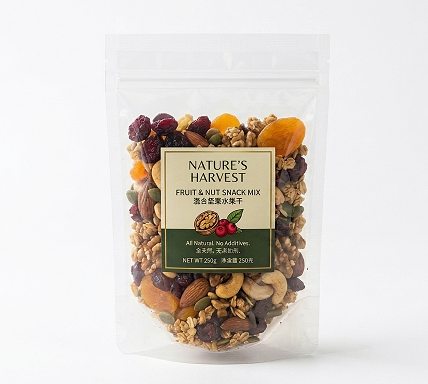

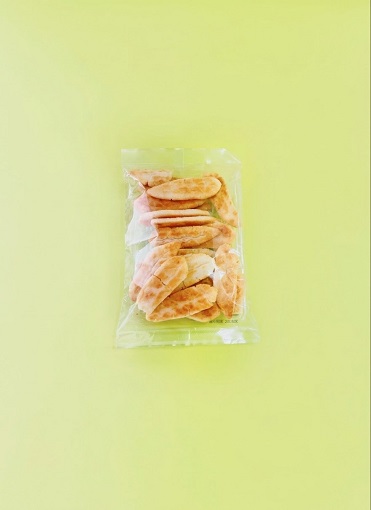

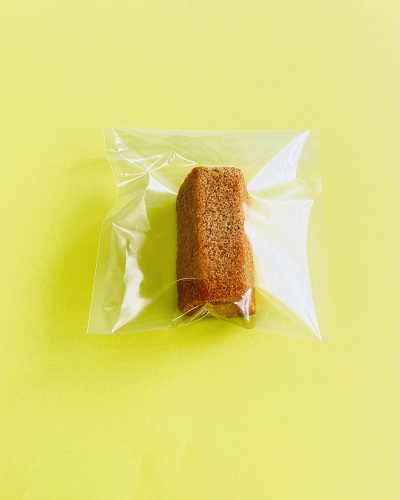

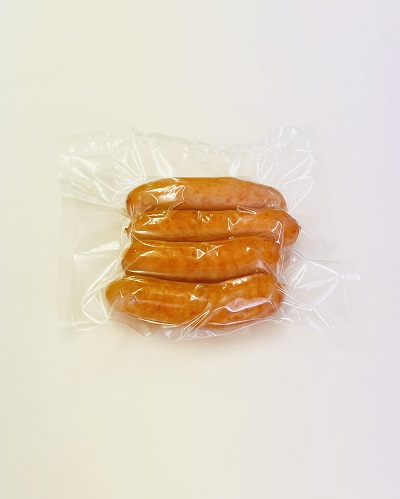

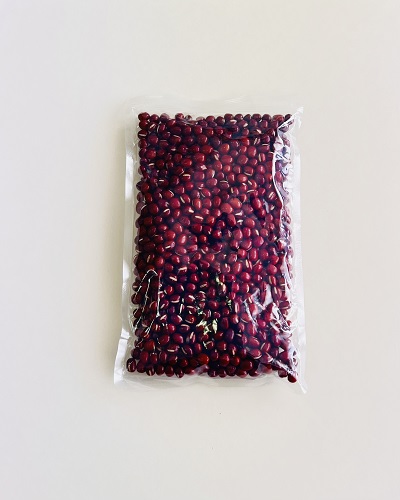

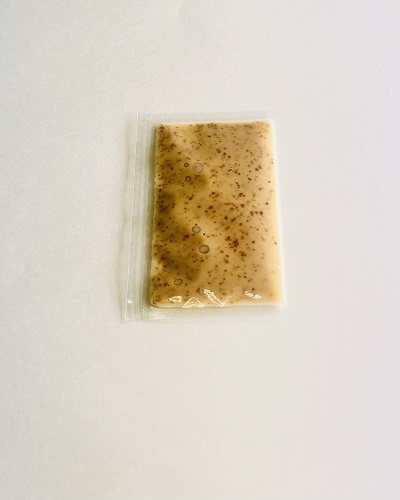

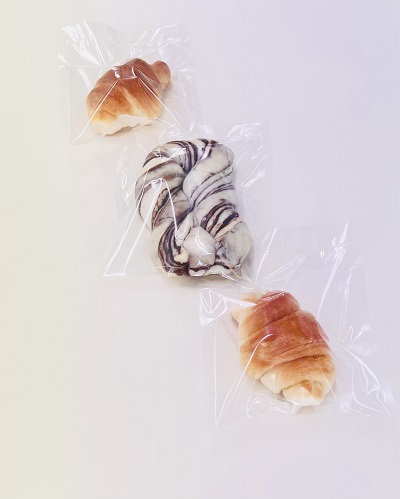

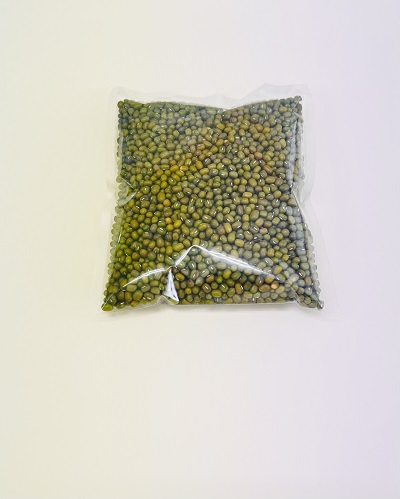

Product application
Steamed Food Packaging
Pet Food Packaging

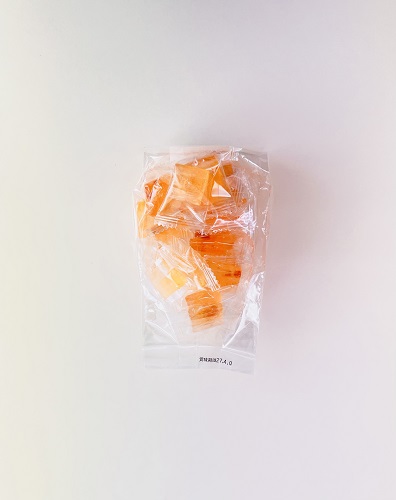

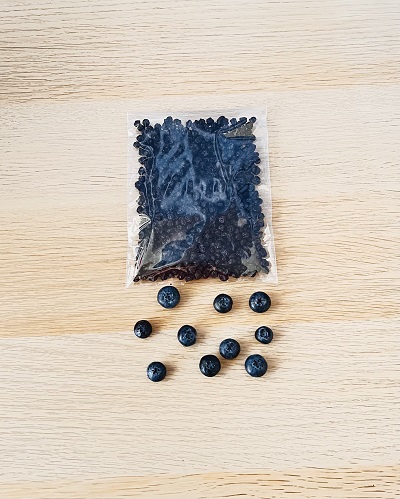

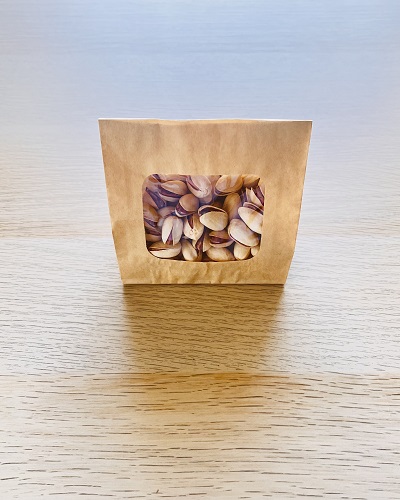

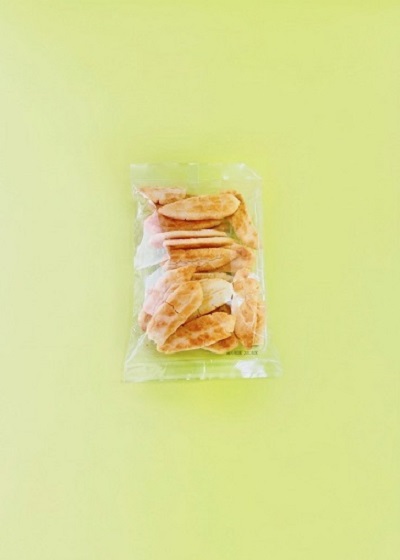

Snack Food, Puffed Food, Pastry and Sauce Packaging
Product features
Boil-proof
1 / 12
High water clarity
2 / 12
Environmentally friendly
3 / 12
No chlorine gas release
4 / 12
Transparent, non-metallic
5 / 12
Suitable for composite processing, excellent printability
6 / 12
Oxygen barrier
7 / 12
Weather resistance
8 / 12
Flex resistance
9 / 12
Aroma retention
10 / 12
Minimal residue upon complete combustion
11 / 12
Compatible with: metal detectors, RFID, microwave ovens
12 / 12
Product technical indicators

Performance

Target value

Test value※

Testing Standards

Thickness

12±1μm

12.2μm

GB/T 6672-2001

Tensile strength

MD

≥170Mpa

205Mpa

GB/T 1040.3-2006

TD

≥170Mpa

232Mpa

Elongation at break

MD

≤170%

94%

GB/T 1040.3-2006

TD

≤170%

87%

Oxygen Transmission Rate OTR（23℃，50%RH）

Single-story

≤0.5cc/m²/day

0.3cc/m²/day

ASTM D3985

Water Vapor Permeability WVTR （38℃，90%RH）

Single-story

≤1g/m²/day

0.6g/m²/day

ASTM F1249

Optical transmittance

≥89%

90.3%

GB/T 2410-2008

Haze

≤5%

3.45%

GB/T 2410-2008

Printability

Surface tension

Coating layer

≥46dyn/cm

50dyn/cm

GB/T 14216-2008

Non-coated layer

/

32dyn/cm

Boil resistance(NG)
121°C, 30 minutesAcceptable




※ Data represents internal test values and is not guaranteed.

※ Water Vapor Transmission Rate (WVTR) and Oxygen Transmission Rate (OTR) Testing: Conducted using MOCONi equipment.

Product storage, packaging and shelf life
1 / 2
Storage conditions
Store in an environment with a temperature below 40°C and humidity at 60% RH.
Shelf Life
1 year
