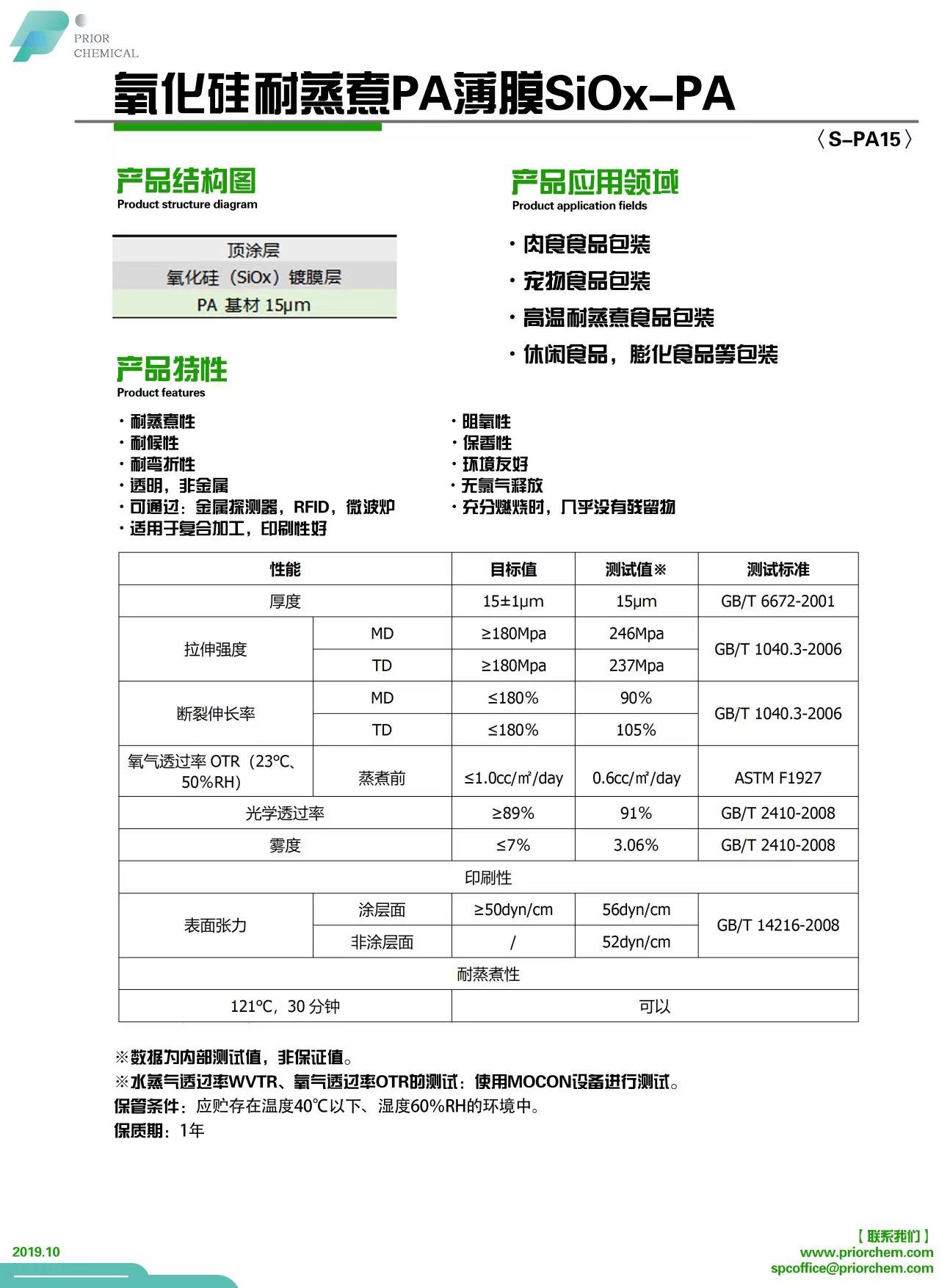

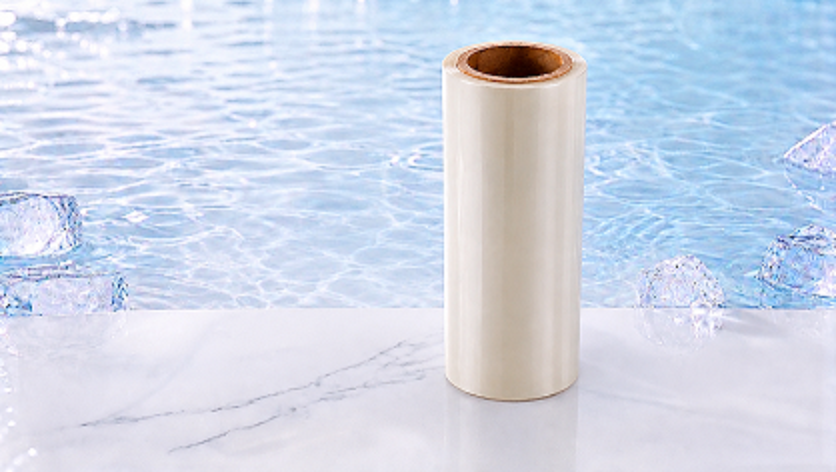

Transparent high barrier film
<S-PA15>

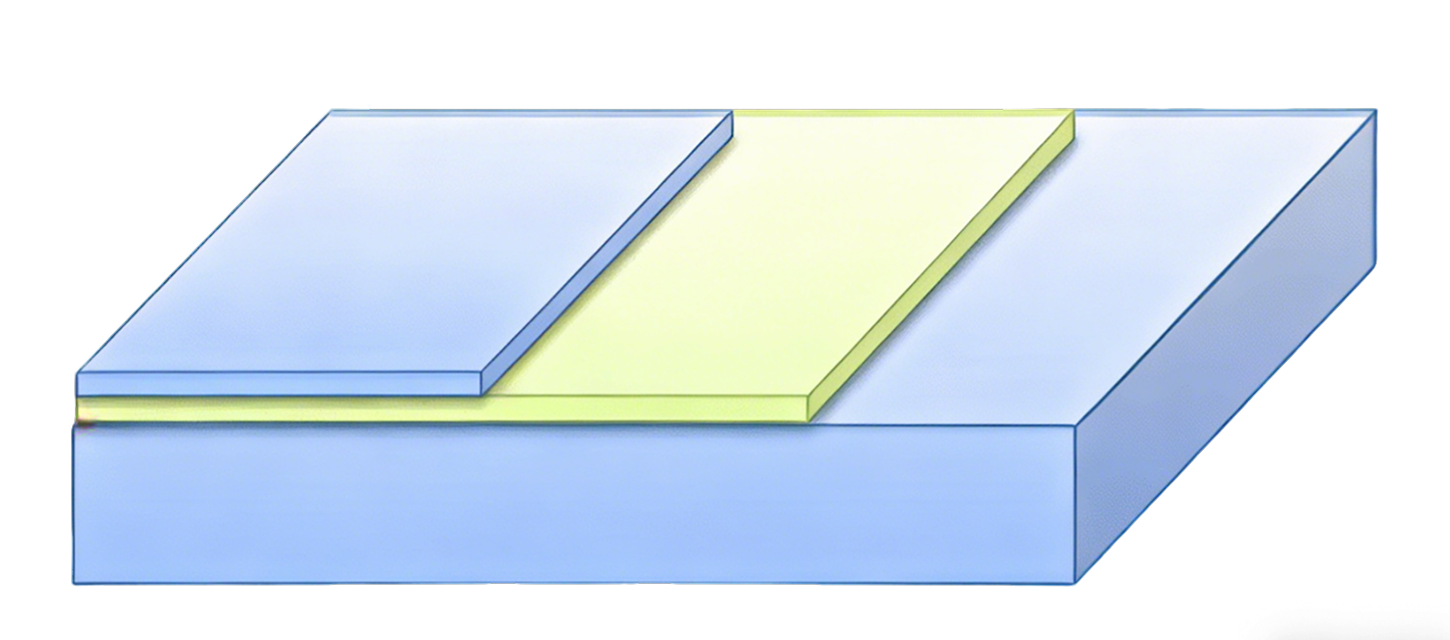

SiOx-PA

      Top Coating







             Silicon Oxide (SiOx) Coating Layer









     PA Substrate 15μm

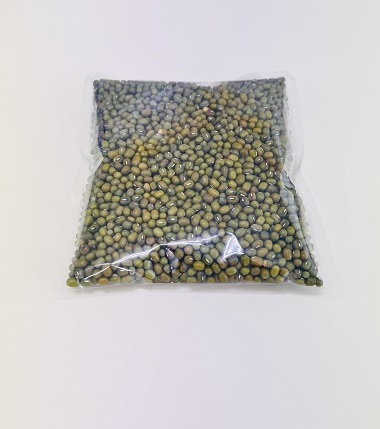

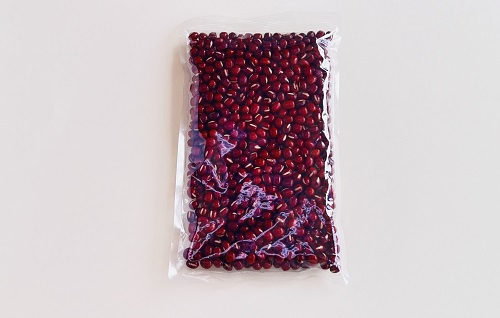

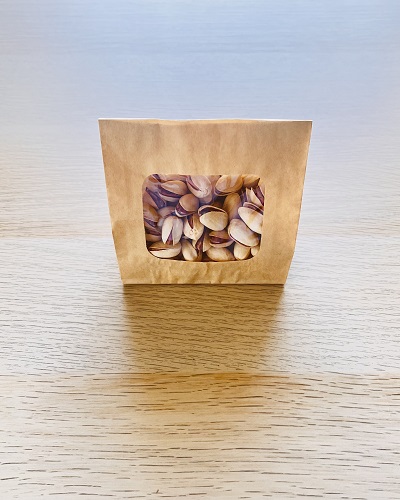

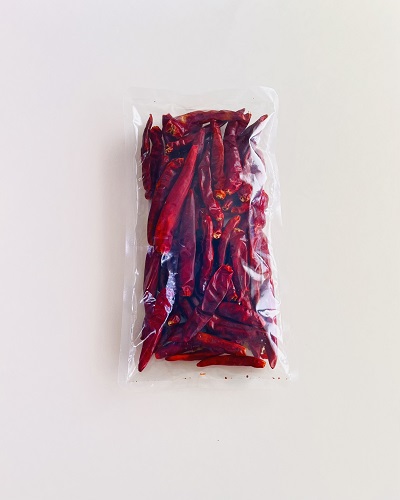

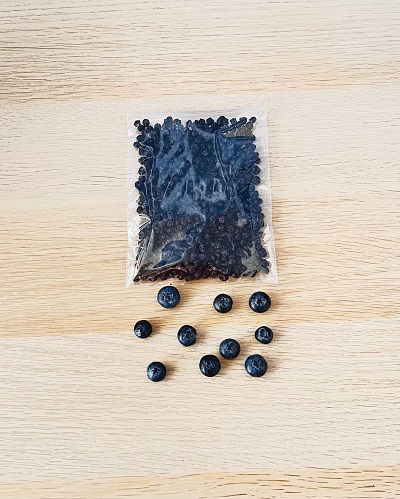

Product application
Meat product packaging

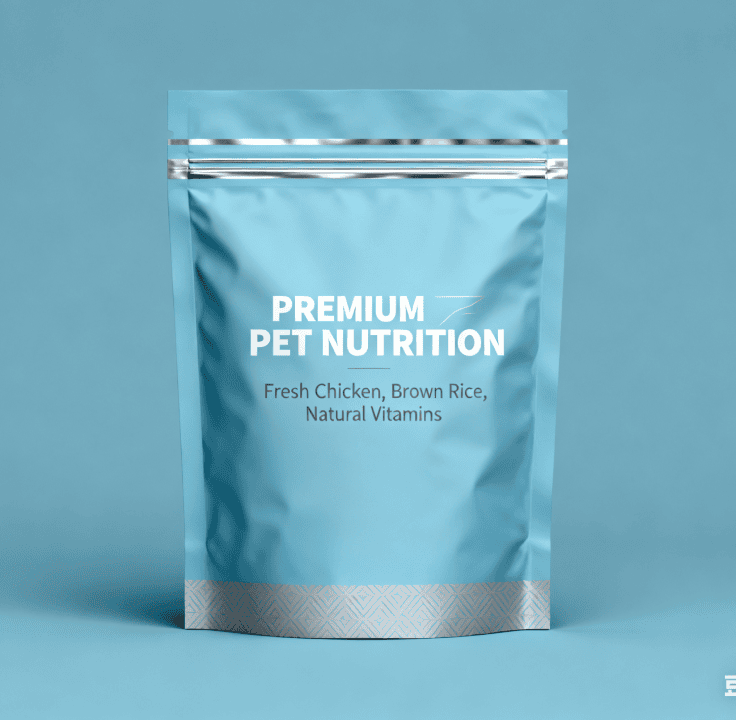

Pet food packaging

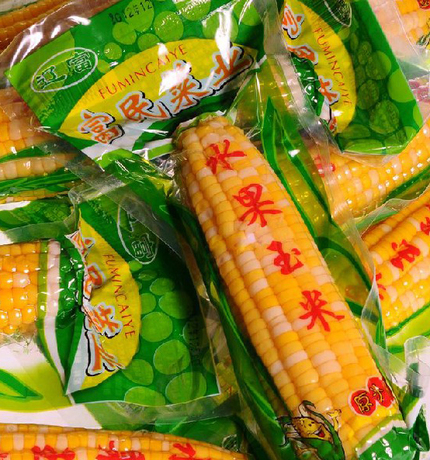

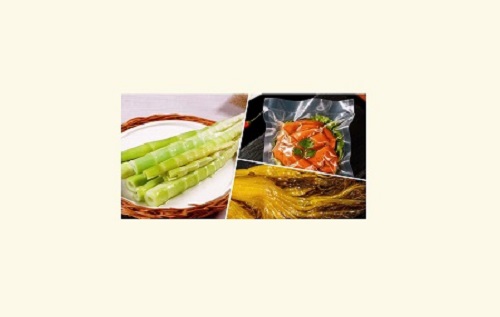

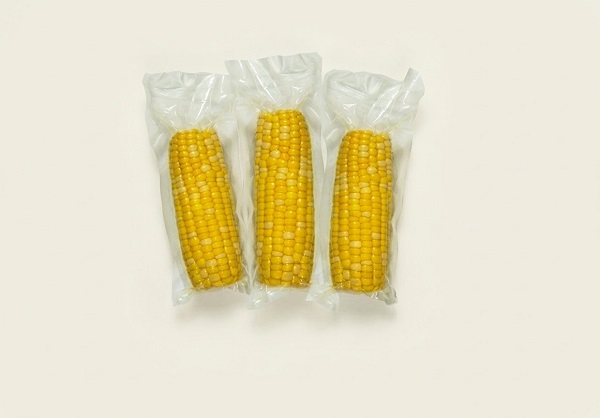

High-temperature retort-cooked food packaging

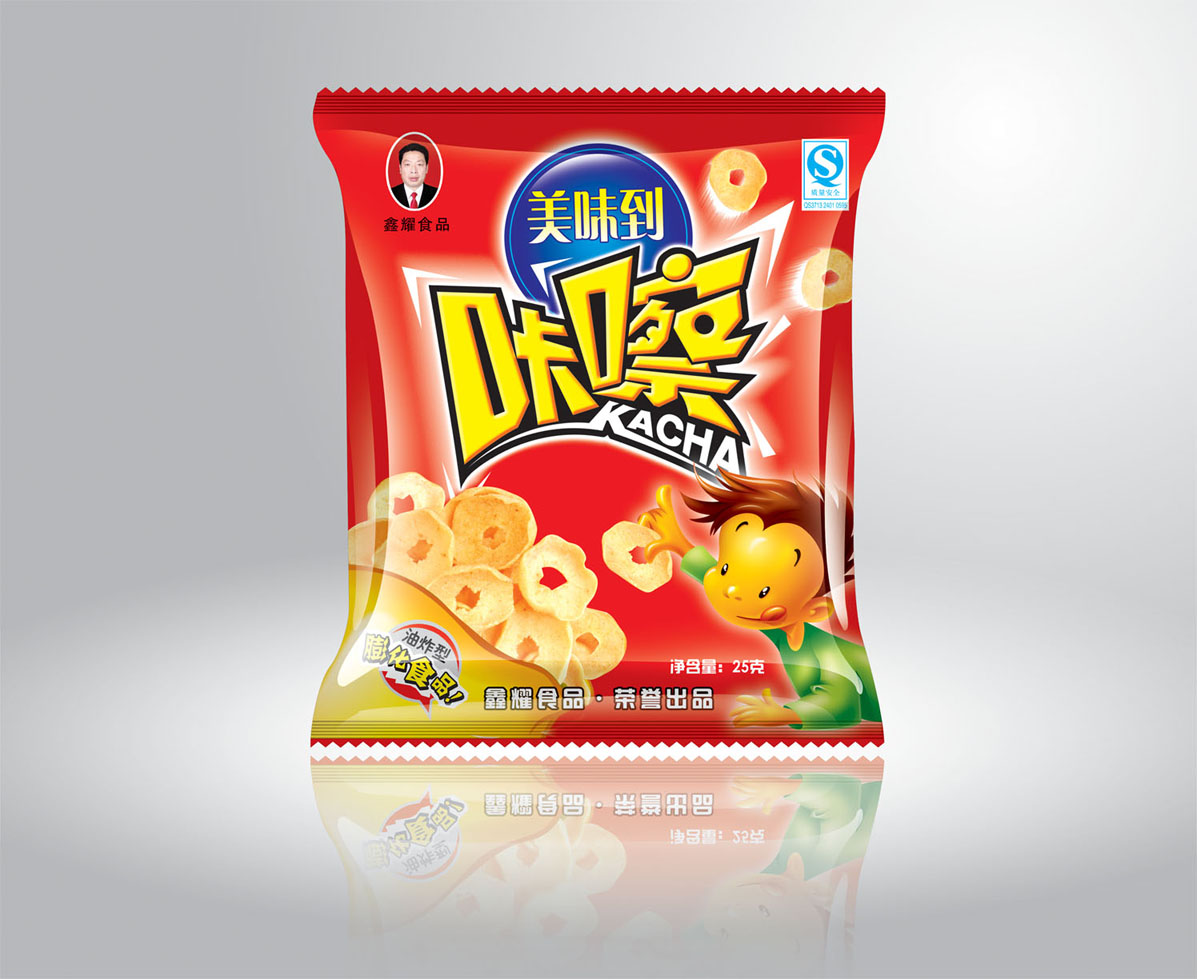

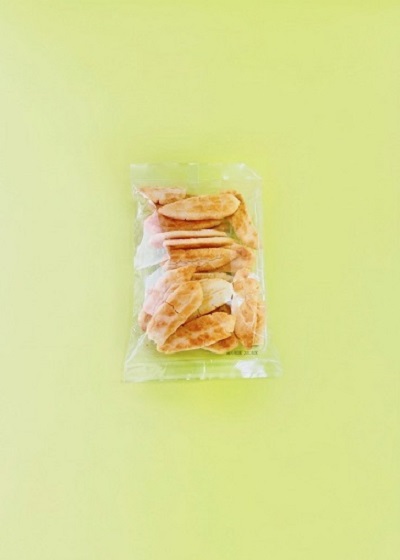

Snack food and puffed food packaging
Product features
Steam resistance
1 / 11
Oxygen barrier properties
2 / 11
Weather resistance
3 / 11
Aroma retention
4 / 11
Flexibility
5 / 11
Environmentally friendly
6 / 11
Transparent, non-metallic
7 / 11
No chlorine gas release
8 / 11
Compatible with: metal detectors, RFID, microwave ovens
9 / 11
Minimal residue upon complete combustion
10 / 11
Suitable for composite processing, excellent printability
11 / 11
Product technical indicators

Performance

Target value

Test value

Testing Standards

Thickness

15±1μm

15μm

GB/T 6672-2001

Thickness

MD

≥180Mpa

246Mpa

GB/T 1040.3-2006

TD

≥180Mpa

237Mpa


Elongation at break

MD

≤180%

90%

GB/T 1040.3-2006

TD

≤180%

105%


Oxygen Transmission Rate OTR (23°C, 50% RH)

Before steaming

≤1.0cc/m2/day

0.6cc/m2/day

ASTM F1927

Optical transmittance

≥89%

91%

GB/T 2410-2008

Haze

≤7%

3.06%

GB/T 2410-2008

Printability

Surface tension

Coating layer

≥50dyn/cm

56dyn/cm

GB/T 14216-2008

Non-coated surface

/

52dyn/cm


Boil resistance

121°C, 30 minutes

Acceptable


※ Data are internal test values and not guaranteed values.

※ Water Vapor Transmission Rate (WVTR) and Oxygen Transmission Rate (OTR) testing: Conducted using MOCON equipment.

Product storage, packaging and shelf life
1 / 2
Storage conditions
Store in an environment with a temperature below 40°C and humidity at 60% RH.
Shelf Life
1 year
